In recent years, with the development of material science and the advancement of motor technology, permanent magnet synchronous motors have been developing rapidly and have obvious advantages over traditional three-phase asynchronous motors.JSXX has followed the development trend of the transmission field, and has focused on the development of the PLANETPLUS ® Permanent Magnet Semi-Direct-Drive Transmission System through technological innovation and product iteration, from the traditional purely mechanical gear transmission.
The system uses high-performance permanent magnet materials, the application of deformation optimization design to improve the structure of the motor, as well as inverter DTC direct torque control and vector control, in the play of permanent magnet motor high efficiency and inverter control of intelligent advantages, while using the gear transmission structure of the high power density, effectively make up for the disadvantages of the relatively low torque density of the low-speed permanent magnet motors, with high efficiency, low loss, low noise, easy to maintain, High efficiency, low loss, low noise, easy maintenance, high reliability, high power density, providing customers with more cost-effective solutions.
We specialize in the production of high-quality gearboxes, especially in the field of permanent magnet semi-direct drive, and have established close cooperation with a number of well-known inverter and permanent magnet motor manufacturers. Through this efficient cooperation mechanism, we are able to realize integrated design to ensure the optimal performance and efficiency of our products. We emphasize the needs of our customers and help them to stand out from the competition with our quick response capability and flexible production process.
Intelligent PLUS: Intelligent drive control, realizing fast response and precise control. It can be combined with the intelligent dispatch center to realize big data processing and real-time monitoring of the production process, optimize production planning and improve product quality.
Efficiency PLUS: The permanent magnet semi-direct drive system utilizes permanent magnet synchronous motors with high energy efficiency and power factor, and the comprehensive system efficiency is ≥94%, which is suitable for long-time operation and occasions with high energy-saving requirements.
Stability PLUS: The gear transmission module adopts a number of optimization technologies and the same strict manufacturing standards as traditional products, which transmits large torque with smooth operation, low noise and low vibration, and the comprehensive noise is ≤80dB.
Maintenance PLUS: Compared with traditional gearboxes, this system requires relatively low maintenance due to the reduction of mechanical transmission components, thus reducing operating costs.

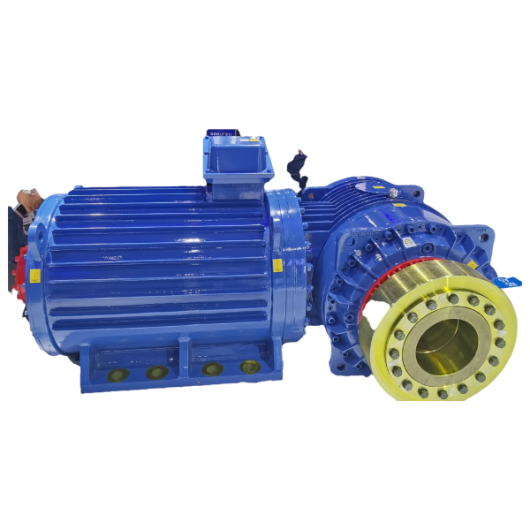

Compact PLUS: The integrated design of permanent magnet synchronous motor + planetary gear package provides higher output torque in a smaller volume, making the system more compact in design.

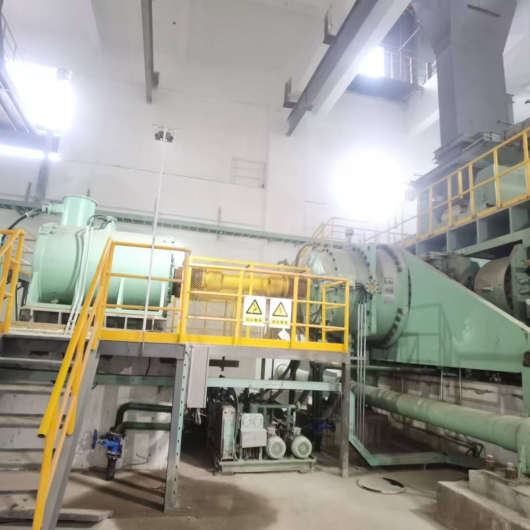

Roller Mills
Drive power: 120~5500 kW
Voltage: 6kV/ 10kV
Output speed: 16~28 r/min
Load torque: 40~6800 kNm
Internal Mixing Mills
Drive power: 500~3550 kW
Voltage: 6kV/ 10kV
Output speed: 20~60 r/min
Load torque: 80~4500 kNm
Open Mixing Mills
Drive power: 75~355 kW
Voltage: 380V
Output speed: 10~20 r/min
Load torque: 40~850 kNm
Vertical Mills
Drive power: 110~8000 kW
Voltage: 6kV/ 10kV
Output speed: 20~45 r/min
Load torque: 25~10000 kNm
Scraper
Drive power: 250~4000 kW
Voltage: 1140V/3300V
Output speed: 36~50 r/min
Load torque: 50~2750 kNm
Bucket Elevator
Drive power: 7.5~315 kW
Voltage: 380V
Output speed: 15~45 r/min
Load torque: 2~350 kNm
